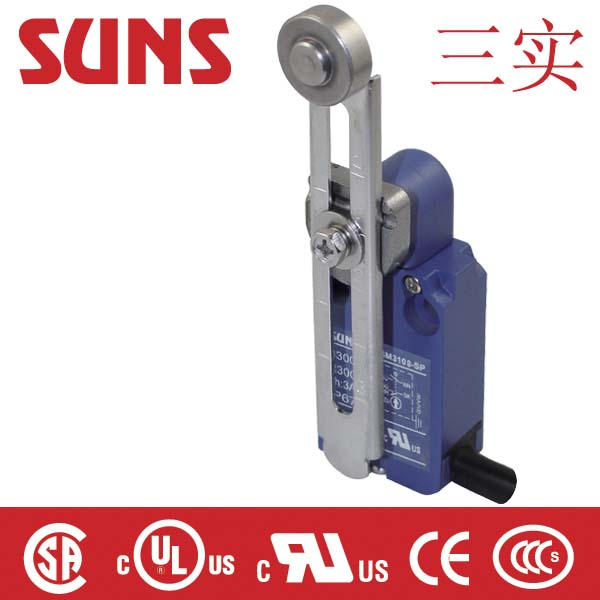

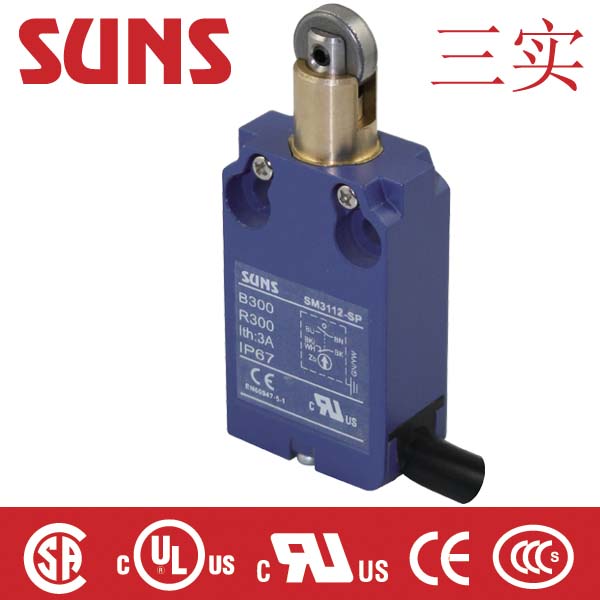

SUNS美国三实SM31系列IP67防水安全限位开关

分体式，模块化

体积小，适合机械设备的小型化

金属外壳，IP67防护等级，适合户外使用

预接线式和接插件式可选

侧边出现和底部出线可选

三实不仅为您提供产品，更为您提供选型指导、技术支持和定制化服务

客户可以从三实多年来服务于工业的丰富经验中获益

触点结构：Zb，接点形式有：快动1NO/1NC、快动2NO/2NC、快动1NO/2NC、快动2NO/1NC、快动2NO、快动2NC、慢动1NO/1NC BBM、慢动2NO、慢动2NC。

产品认证：UL、CSA、CE、CCC

壳体尺寸：30×50×16，安装孔距离：

操作速度：0.05mm-2m /s

操作频率： 机械120ops/min 电气30ops/min

绝缘电阻： >100MΩ@500V DC

接点电阻： <25mΩ (initial value)

额定封闭发热电流：/5A (EN6)

电气等级： AC15 B300 / DC13 R300

耐压值： 同级端子间1000V AC 50/60Hz 1分钟

端子对地或对无载金属间2500V AC 50/60Hz 1分钟

寿命： 机械1.0×10^7 电气5×10^5

环境温度： -25～+80 不结冰

湿度：<95％RH

电缆：5芯，0.75mm2 7芯，0.5mm2 9芯，0.34mm2

防护等级： IP67

SUNS 美国三实产品型号：SM31P11-01 SM31P11-02 SM31P11-03 SM31P11-04 SM31P11-07 SM31P11-08 SM31P11-11 SM31P11-12 SM31P11-22 SM31P11-21 SM31P11-31 SM31P11-32 SM31P11-42 SM31P11-66 SM31P11-69

SM31S11-01 SM31S11-02 SM31S11-03 SM31S11-04 SM31S11-07 SM31S11-08 SM31S11-11 SM31S11-12 SM31S11-22 SM31S11-21 SM31S11-31 SM31S11-32 SM31S11-42 SM31 S11-66 SM31 S11-69

SM31P22-01 SM31P22-02 SM31P22-03 SM31P22-04 SM31P22-07 SM31P22-08 SM31P22-11 SM31P22-12 SM31P22-22 SM31P22-21 SM31P22-31 SM31P22-32 SM31P22-42 SM31P22-66 SM31P22-69

SM31P12-01 SM31P12-02 SM31P12-03 SM31P12-04 SM31P12-07 SM31P12-08 SM31P12-11 SM31P12-12 SM31P12-22 SM31P12-21 SM31P12-31 SM31P12-32 SM31P12-42 SM31P12-66 SM31P12-69

SM31P02-01 SM31P02-02 SM31P02-03 SM31P02-04 SM31P02-07 SM31P02-08 SM31P02-11 SM31P02-12 SM31P02-22 SM31P02-21 SM31P02-31 SM31P02-32 SM31P02-42 SM31P02-66 SM31P02-69

SM31P20-01 SM31P20-02 SM31P20-03 SM31P20-04 SM31P20-07 SM31P20-08 SM31P20-11 SM31P20-12 SM31P20-22 SM31P20-21 SM31P20-31 SM31P20-32 SM31P20-42 SM31P20-66 SM31P20-69

SM31S12-01 SM31S12-02 SM31S12-03 SM31S12-04 SM31S12-07 SM31S12-08 SM31S12-11 SM31S12-12 SM31S12-22 SM31S12-21 SM31S12-31 SM31S12-32 SM31S12-42

SM31S02-01 SM31S02-02 SM31S02-03 SM31S02-04 SM31S02-07 SM31S02-08 SM31S02-11 SM31S02-12 SM31S02-22 SM31S02-21 SM31S02-31 SM31S02-32 SM31S02-42

SM31S20-01 SM31S20-02 SM31S20-03 SM31S20-04 SM31S20-07 SM31S20-08 SM31S20-11 SM31S20-12 SM31S20-22 SM31S20-21 SM31S20-31 SM31S20-32 SM31S20-42
